Clean Architecture vs Onion Architecture vs Hexagonal Architecture

Clean Architecture, Onion Architecture, and Hexagonal Architecture come up in every discussion about structuring .NET applications. They're often treated as competing options, but all three defend the same idea: business logic at the center, infrastructure at the edges. In a .NET solution, they even produce nearly identical project structures. Here's what actually differs, what's just naming, and how to pick one without losing a week to the debate.

Three Names, One Goal

If you've been reading about software architecture, you've probably encountered three similar-looking approaches:

• Clean Architecture (Robert C. Martin, 2012)
• Onion Architecture (Jeffrey Palermo, 2008)
• Hexagonal Architecture / Ports and Adapters (Alistair Cockburn, 2005)

They all aim at the same thing: keep your business logic independent of frameworks, databases, and external concerns.

The core insight behind all three is the Dependency Rule - dependencies point inward. Infrastructure depends on your domain, never the other way around.

So what's actually different?

Hexagonal Architecture (Ports and Adapters)

Hexagonal Architecture was the first of the three, introduced by Alistair Cockburn in 2005.

The key concept is simple: your application has a core (the hexagon) surrounded by ports and adapters.

• Ports are interfaces that define how the application talks to the outside world (and vice versa)
• Adapters are implementations that connect those ports to real infrastructure

There are two types of ports:

• Driving ports (primary) - how the outside world talks to your application (e.g., an HTTP controller calling a use case)
• Driven ports (secondary) - how your application talks to external systems (e.g., a repository interface for database access)

The hexagon itself contains your business logic. It doesn't know about HTTP, databases, or message queues.

Strengths:

• The ports/adapters mental model is intuitive
• Makes testability explicit - you test by plugging in fake adapters
• Symmetric - treats all external concerns equally (UI, database, messaging)

In .NET terms: Your domain and application logic sit in one project. Interfaces (ports) define the boundaries. Infrastructure implementations (adapters) connect to real systems.

Onion Architecture

Jeffrey Palermo introduced Onion Architecture in 2008, building on the hexagonal idea with a more explicit layer structure.

The architecture is organized in concentric rings:

1. Domain Model (center) - entities, value objects, domain logic
2. Domain Services - business operations that span multiple entities
3. Application Services - use case orchestration, DTOs
4. Infrastructure (outer ring) - database, file system, external services

The rules are:

• Inner layers define interfaces
• Outer layers provide implementations
• Dependencies always point inward

Strengths:

• Clearer layer separation than hexagonal
• Explicit placement of domain services
• The "onion rings" visualization is easy to communicate

In .NET terms: You typically create separate projects for each ring - Domain, Application, Infrastructure, and Presentation.

Clean Architecture

Robert C. Martin formalized Clean Architecture in 2012, combining ideas from hexagonal and onion architectures.

The layers are:

1. Entities (Enterprise Business Rules) - core business objects
2. Use Cases (Application Business Rules) - application-specific logic
3. Interface Adapters - controllers, presenters, gateways
4. Frameworks & Drivers - web framework, database, external tools

Clean Architecture adds explicit concepts like:

• Use Cases as first-class citizens
• Input/Output boundaries between layers
• The Dependency Rule stated explicitly

Strengths:

• Most prescriptive of the three - clear guidance on where things go
• Use cases are front and center
• Strong community adoption in .NET (thanks to common templates and structured guides)

In .NET terms: The typical project structure is Domain, Application, Infrastructure, Presentation - which happens to match the Onion Architecture layout closely.

Side-by-Side Comparison

Here's how the three approaches stack up:

What They Have in Common

All three share these core principles:

1. Business logic at the center - domain code has zero dependencies on infrastructure
2. Dependency inversion - outer layers depend on inner layers, never the reverse
3. Testability by design - you can test business logic without databases, HTTP, or external services
4. Framework independence - swapping a web framework or database shouldn't require rewriting business rules
5. Interfaces as boundaries - abstractions define how layers communicate

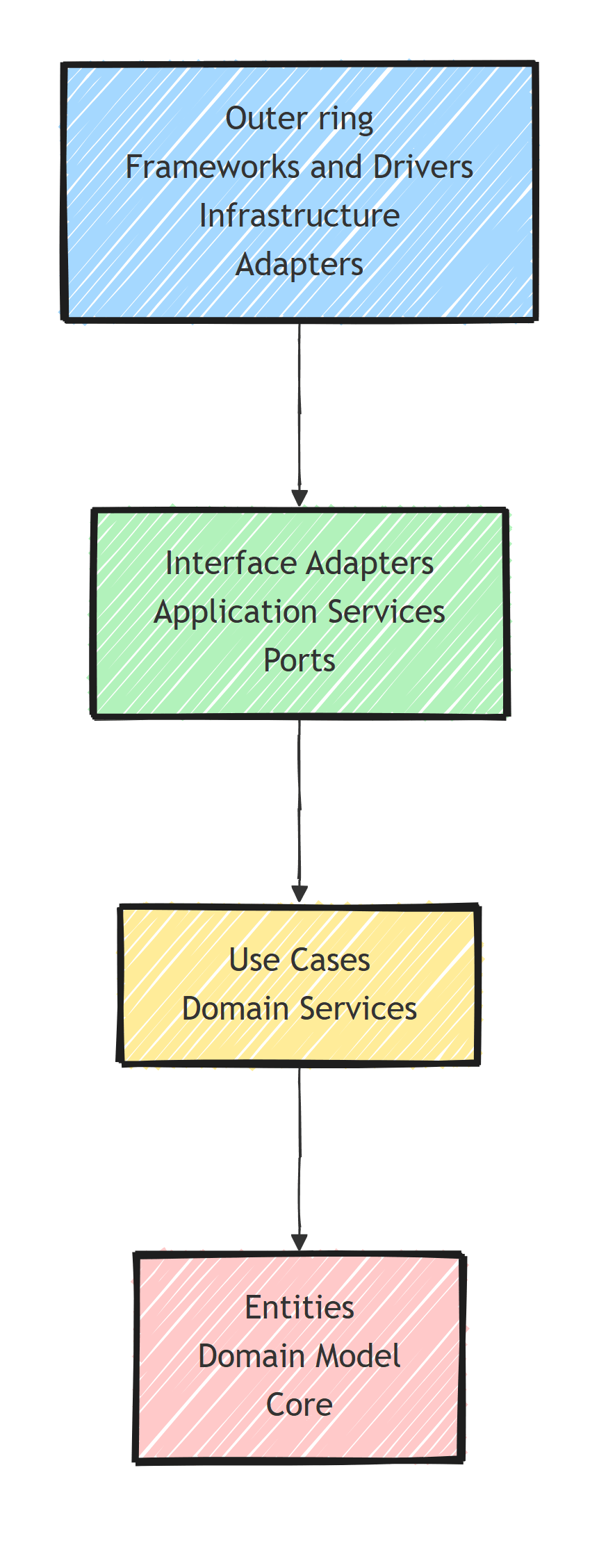

In practice, a .NET solution following any of these three architectures looks remarkably similar. The same four rings show up under different names, with dependencies always pointing inward:

The naming differs. The structure is nearly identical.

Which Should You Choose?

Honestly? It doesn't matter as much as you think.

All three solve the same problem. If you understand the core principles - dependency inversion, business logic at the center, infrastructure at the edges - you can build clean systems with any of them.

That said, here's a practical decision guide:

Choose Clean Architecture when:

• You want clear, prescriptive guidance
• Your team benefits from a well-known, widely documented approach
• You're building in .NET (the ecosystem has strong support with templates and courses)

Choose Hexagonal when:

• You want maximum flexibility in how you structure things
• You work in a polyglot environment where the ports/adapters terminology is common
• You're focused on adapter swappability (testing, multi-channel systems)

Choose Onion when:

• You want layer discipline without the prescriptiveness of Clean Architecture
• You prefer the rings mental model for communicating with your team

Or don't choose at all: If your project is simple, a Vertical Slice Architecture might be more practical. Not every project needs concentric rings. I've written a separate guide on when to use Clean Architecture if you're on the fence.

Common Mistakes

1. Treating the choice as binary. You can mix ideas. Use Clean Architecture's use case structure with Hexagonal's ports and adapters terminology. The principles are compatible.

2. Over-engineering small projects. A CRUD API with five endpoints doesn't need four projects. Start simple and add architecture when complexity demands it.

3. Arguing about names instead of principles. The Dependency Rule matters more than whether you call it a "port" or an "interface". Focus on the direction of dependencies, not the labels.

4. Forgetting that architecture is a means, not an end. The goal is maintainable, testable software. If your architecture makes the codebase harder to work with, you've missed the point.

Summary

Clean Architecture, Onion Architecture, and Hexagonal Architecture are variations of the same idea: protect your business logic by making infrastructure depend on your domain, not the other way around.

They differ in naming, structure, and emphasis - but the principles are identical.

Pick the one your team understands best, and focus on applying the principles consistently.

Thanks for reading, and stay awesome!
