Table Per Hierarchy vs Table Per Type in EF Core

TPH (Table Per Hierarchy) maps a whole class hierarchy to one table with a discriminator column, and it is EF Core's default. TPT (Table Per Type) gives the base class and each subclass its own table, joined by foreign key. TPH keeps polymorphic queries to one table scan, while TPT normalizes the schema and can enforce NOT NULL on subclass columns. Start with TPH unless you have a strong reason not to.

Object inheritance has no single natural relational representation. TPH, TPT, and TPC distribute columns and joins differently, so the choice affects query shape long after the mapping code is written. Decide from the reads you need and the constraints you value, then verify the generated SQL.

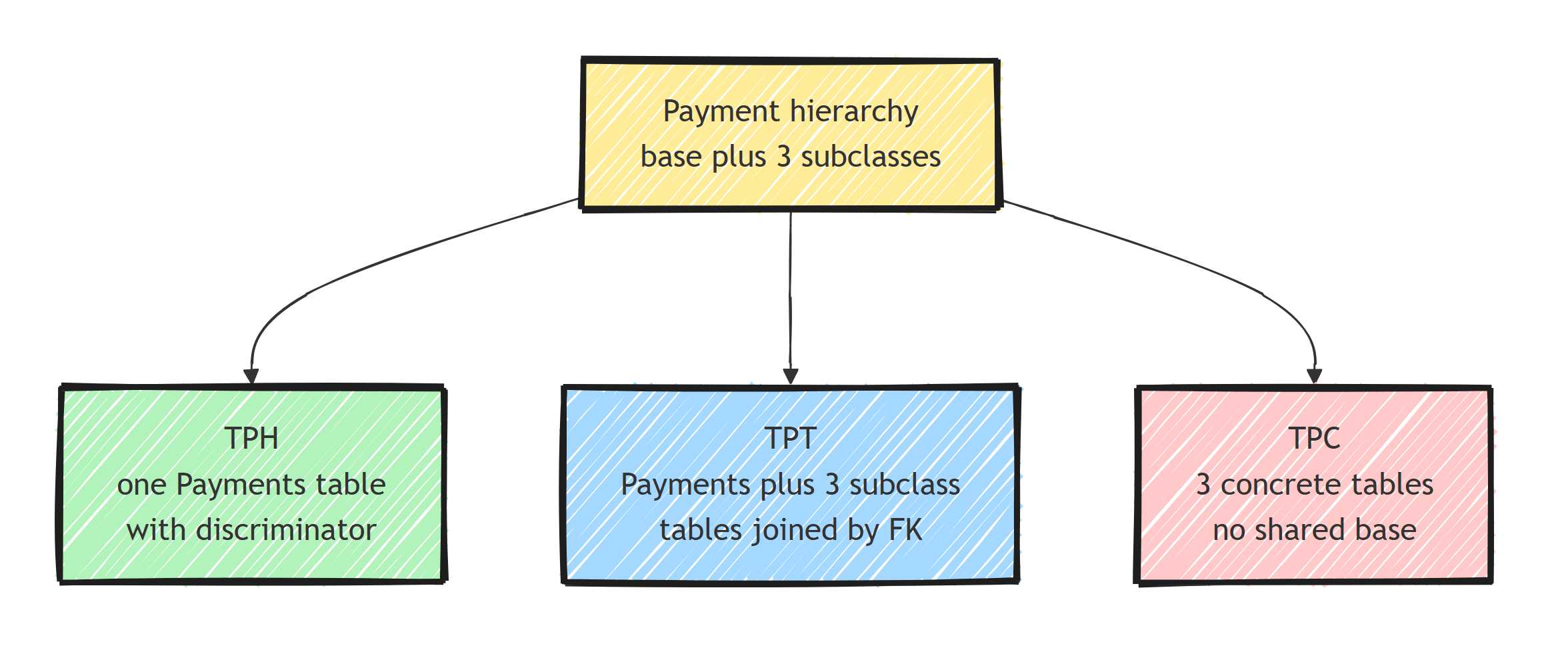

Inheritance Mapping in EF Core

When your domain model uses inheritance - a base Payment class with CreditCardPayment and BankTransferPayment subclasses - EF Core needs a strategy to map this to relational tables. The two main approaches are Table Per Hierarchy (TPH) and Table Per Type (TPT).

The wrong strategy becomes expensive to change once the hierarchy contains production data. The choice affects query performance, schema complexity, and which constraints the database can express.

Table Per Hierarchy (TPH)

TPH stores all types in a single table with a discriminator column that indicates the type:

public abstract class Payment
{
    public Guid Id { get; set; }
    public decimal Amount { get; set; }
    public DateTime CreatedAt { get; set; }
    public string Currency { get; set; } = "USD";
}

public class CreditCardPayment : Payment
{
    public string CardNumber { get; set; } = string.Empty;
    public string CardHolderName { get; set; } = string.Empty;
    public string ExpiryDate { get; set; } = string.Empty;
}

public class BankTransferPayment : Payment
{
    public string BankName { get; set; } = string.Empty;
    public string AccountNumber { get; set; } = string.Empty;
    public string RoutingNumber { get; set; } = string.Empty;
}

public class CryptoPayment : Payment
{
    public string WalletAddress { get; set; } = string.Empty;
    public string Network { get; set; } = string.Empty;
}

TPH is the default in EF Core. One Payments table stores everything:

• A credit card payment row fills Amount, Currency, Discriminator = 'CreditCard', CardNumber, and CardHolderName, while BankName, AccountNumber, and WalletAddress are NULL.
• A bank transfer row fills Amount, Currency, Discriminator = 'BankTransfer', BankName, and AccountNumber, while all the credit card and crypto columns are NULL.

Every subclass-specific column exists on every row, and rows of other types leave them NULL.

Configure the discriminator:

public class PaymentConfiguration : IEntityTypeConfiguration<Payment>
{
    public void Configure(EntityTypeBuilder<Payment> builder)
    {
        builder.ToTable("Payments");

        builder.HasDiscriminator<string>("PaymentType")
            .HasValue<CreditCardPayment>("CreditCard")
            .HasValue<BankTransferPayment>("BankTransfer")
            .HasValue<CryptoPayment>("Crypto");

        builder.Property("PaymentType")
            .HasMaxLength(50);
    }
}

Table Per Type (TPT)

TPT uses a separate table for each type. The base class gets one table, each subclass gets another table with a foreign key back to the base:

protected override void OnModelCreating(ModelBuilder modelBuilder)
{
    modelBuilder.Entity<Payment>().ToTable("Payments");
    modelBuilder.Entity<CreditCardPayment>().ToTable("CreditCardPayments");
    modelBuilder.Entity<BankTransferPayment>().ToTable("BankTransferPayments");
    modelBuilder.Entity<CryptoPayment>().ToTable("CryptoPayments");
}

On EF Core 7+, you can also state the intent explicitly with modelBuilder.Entity<Payment>().UseTptMappingStrategy();, but the per-type ToTable calls alone are enough to trigger TPT.

This creates four tables:

• Payments (Id, Amount, Currency, CreatedAt)
• CreditCardPayments (Id → FK to Payments, CardNumber, CardHolderName, ExpiryDate)
• BankTransferPayments (Id → FK to Payments, BankName, AccountNumber, RoutingNumber)
• CryptoPayments (Id → FK to Payments, WalletAddress, Network)

Performance Comparison

This is where the two strategies diverge significantly.

Querying all payments (TPH):

SELECT * FROM Payments

One table scan. Fast.

Querying all payments (TPT):

SELECT p.*, cc.*, bt.*, cr.*
FROM Payments p
LEFT JOIN CreditCardPayments cc ON p.Id = cc.Id
LEFT JOIN BankTransferPayments bt ON p.Id = bt.Id
LEFT JOIN CryptoPayments cr ON p.Id = cr.Id

Multiple LEFT JOINs. Gets slower with each type added.

Querying a specific type (TPH):

var creditCardPayments = await dbContext.Set<CreditCardPayment>()
    .Where(p => p.Amount > 100)
    .ToListAsync();

SELECT * FROM Payments WHERE PaymentType = 'CreditCard' AND Amount > 100

Fast - just a filter on the discriminator column.

Querying a specific type (TPT):

SELECT p.*, cc.*
FROM Payments p
INNER JOIN CreditCardPayments cc ON p.Id = cc.Id
WHERE p.Amount > 100

Still needs a JOIN, but only one.

Inserting Data

TPH: Single INSERT to one table.

dbContext.Set<CreditCardPayment>().Add(new CreditCardPayment
{
    Amount = 100,
    Currency = "USD",
    CardNumber = "4111111111111111",
    CardHolderName = "John Doe",
    ExpiryDate = "12/28"
});
await dbContext.SaveChangesAsync();

TPT: Two INSERTs - one to the base table, one to the subclass table (in a transaction).

The INSERT overhead matters at high write volumes. TPH is consistently better for writes.

Data Integrity

TPH disadvantage: Subclass-specific columns must be nullable. You can't enforce that CardNumber is required at the database level because BankTransferPayment rows don't have it. You need application-level validation.

TPT advantage: Each subclass table can enforce its own NOT NULL constraints. CreditCardPayments.CardNumber can be NOT NULL.

// TPT allows proper constraints
modelBuilder.Entity<CreditCardPayment>(b =>
{
    b.Property(p => p.CardNumber).IsRequired().HasMaxLength(19);
    b.Property(p => p.CardHolderName).IsRequired().HasMaxLength(100);
});

Table Per Concrete Type (TPC)

EF Core 7 introduced TPC as a third option. Each concrete type gets its own table with all columns - no foreign keys between them:

modelBuilder.Entity<Payment>().UseTpcMappingStrategy();
modelBuilder.Entity<CreditCardPayment>().ToTable("CreditCardPayments");
modelBuilder.Entity<BankTransferPayment>().ToTable("BankTransferPayments");
modelBuilder.Entity<CryptoPayment>().ToTable("CryptoPayments");

TPC queries use UNION ALL instead of JOINs:

SELECT * FROM CreditCardPayments
UNION ALL
SELECT * FROM BankTransferPayments
UNION ALL
SELECT * FROM CryptoPayments

TPC is good when you rarely query across all types and mostly query specific subtypes.

One caveat: TPC works best with client-generated keys like Guid. A plain identity column cannot guarantee uniqueness across separate tables, so EF Core generates integer keys from a single shared sequence instead.

Side-by-Side Comparison

Here's how the three strategies compare across the factors that matter:

Which Strategy Should You Choose?

My recommendation: Start with TPH unless you have a strong reason not to. The performance advantage is significant, and the nullable column issue is manageable with proper validation.

Use TPT when:

• You have many subclass-specific columns and most would be NULL in TPH
• Database-level constraints on subclass properties are critical
• You rarely query across all types

Use TPC when:

• Each concrete type is mostly queried independently
• You need strong constraints without JOINs

Querying Gotchas Worth Knowing

A few things that surprise people in production:

OfType<T>() translates to a discriminator filter with TPH, so this stays a single-table query:

var cardPayments = await dbContext.Payments
    .OfType<CreditCardPayment>()
    .Where(p => p.Amount > 100)
    .ToListAsync();

Global query filters apply to the whole hierarchy. You can only define a query filter on the root type, and it applies to every subclass. You can't filter just one payment type globally.

The discriminator column has no index by default. If you frequently query a rare subtype in a huge table, add an index on the discriminator (or a filtered index for that discriminator value). This is the same class of problem as any other query performance mistake: measure first, then index.

Switching Strategies Later

Changing the mapping strategy is a schema migration:

// To switch from TPH to TPT:
modelBuilder.Entity<CreditCardPayment>().ToTable("CreditCardPayments");
modelBuilder.Entity<BankTransferPayment>().ToTable("BankTransferPayments");

// dotnet ef migrations add SwitchToTpt

Here's the critical part: the generated migration only changes the schema. It creates the new subclass tables and drops the subclass columns from the old table, but it does not copy your existing data across.

On a production table, you need to add custom SQL to the migration that moves the data before the old columns are dropped. Follow the usual migration best practices: review the generated migration, add the data-copy step, and test it against a restored production backup first.

Summary

TPH is the simplest starting point and usually gives polymorphic queries the least join overhead. TPT trades additional joins for normalized subclass tables, while TPC duplicates base columns to keep concrete-type reads independent. Choose from the actual query mix and required database constraints, then benchmark the generated SQL before the schema becomes expensive to change.
